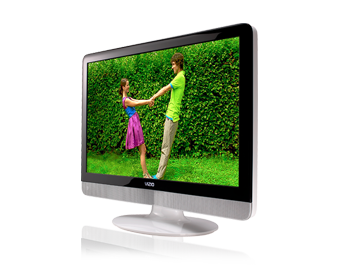

20" Class (20" Diag.) LCD HDTV - Free Shipping

MODEL NUMBER: VX200E Model Features:

  • 20 inch diagonal
  • SRS TruSurround HD™
  • 2 HDMI Ports
  • Exceeds Version 3.0 Energy Star® Specifications


  •

    • Overview
    • Tech Specs
    • Customer Ratings
    • More Photos
    • Support

    Product Overview

     Don’t let the compact size of this HDTV fool you, it packs a powerful punch! This 20” Class (20 inch diagonal) ECO HDTV consumes less energy than traditional HDTVs, exceeding the current Energy Star Guidelines by 45%. The high definition resolution gives you a crystal clear image and the SRS TruSurround HD™ provides enveloping surround sound.

    ECO HD™
    ECO HD

    ECO HD™ exceeds the current Energy Star Guidelines by 15% below Energy Star 3.0, saving you money on your utility bills while limiting the impact on our planet.

    Additional Features Include:

    • SRS TruSurround HD™ Technology – Provides enveloping surround sound.





    Tech Specs

    SPECIFICATIONS
    Class: 20"
    Viewable: 20" Diagonal
    Tuner: ATSC/NTSC/Clear QAM
    Native Panel Resolution: 1600x900
    Signal Compatibility: Supports 480i (SDTV), 480P (EDTV), 720P (HDTV), 1080i (HDTV), 1080P Video Signals
    Colors: 16.7 Million
    Computer Support: 640 x 480, 800 x 600, 1024 x 768, 1320 x 768 via VGA
    Dynamic Contrast Ratio: 5,000:1
    Brightness: 300 cd/m2 (typical)
    Response Time: 5ms
    Viewable Angle: 160° (horizontal and vertical)
    Pixel/Dot Pitch: 0.2768(H) x 0.2768(V) mm
    SRS TruSurround HD™: Yes
    SRS TruVolume™: No
    SRS TruSurround XT™: No



    INPUTS (REAR)
    HDMI with HDCP 2
    RF Connector for Internal Tuner 1
    Component YPbPr plus Stereo Audio: 1
    S-Video: 1
    Computer RGB: 1
    Composite Video: 1
    USB Ports: 1 (Service Only)
    Service Ports:



    INPUTS (SIDE)
    HDMI with HDCP
    RF Connector for Internal Tuner
    Component YPbPr plus Stereo Audio:
    Composite Video:
    S-Video:
    Computer RGB:
    USB Ports:
    Music (MP3):
    Video (MPG):
    Photo (JPEG):
    Service Ports:



    OUTPUTS (REAR)
    SPDIF Digital Optical: 1
    Stereo Audio:
    Headphones: 1



    ADDITIONAL FEATURES
    Refresh Rate: 60Hz
    Smooth Motion: No
    LED: No
    Picture-in-Picture (PIP): No
    Picture-outside-Picture (POP): No
    Zero Bright Pixel Defect Guarantee:
    V-Chip: Yes
    3D Comb Filter: Yes
    3:2 or 2:2 Reverse Pull-down: Yes
    ATSC with 8VSB & QAM demodulation: Yes
    ATSC with MPEG-2 decoding: Yes
    NTSC Video decoding via Video: Yes via RF or Composite Video
    Progressive Scan Video: Yes, thru Component Video, VGA or HDMI
    Color Temperature: 6500K, 9300K, 11000K
    Color Fine Tuning: Independent Red, Green and Blue
    Speakers: Built-in 2 x 3W Speakers
    Panel Lamp Life (typical): 50,000 hours to half the original brightness
    Voltage Range: 100~240Vac at 50/60Hz
    Power Consumption: 35.7W average, < 1 W at 120 Stanby
    Universal Remote: VIZIO Remote Control - VR2



    WEIGHT
    Gross: 14.77 lbs
    Net With Stand: 11.02 lbs
    Without Stand: 10.36 lbs



    DIMENSIONS
    With Stand: 19.555" W x 15.106" H x 8.110" D
    Without Stand: 19.555" W x 13.008" H x 2.713" D
    Packaging Dimensions:



    CERTIFICATIONS CSA, CSA-US, FCC, Class B



    COMPLIANCES  Energy Star 3.0, ATSC Spec A/65, EIA/CEA-766-A



    WALL MOUNT SPECIFICATIONS
    Hole Pattern:  100mm x 100mm
    Screw Size:  M4
    Screw Length:  8mm
    Screw Pitch:  0.7mm



    VIZIO WARRANTY One year parts & labor. Free lifetime technical support. Free on-site repair on VIZIO Televisions 30" and above.
