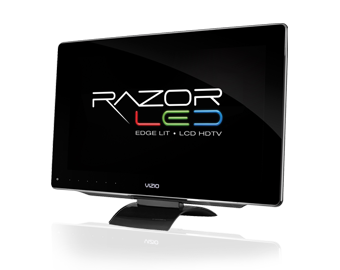

23” Class Edge Lit Razor LED™ LCD HDTV
MODEL NUMBER: VM230XVT Model Features:- • 23" inch diagonal
- • Razor LED LCD HDTV
- • Razor Thin Design With Less Than a 1" Profile*
- • 1080p Full HD
- • Mercury Free
Product Overview
With LESS than a 1” profile*, 23” Class (23" inch diagonal) VM230XVT Razor LED™ LCD HDTV offers full 1080p High Definition resolution for crystal clear images, brilliant color, rich detail and deep contrast – all in a sleek razor thin design. The aesthetic is simply amazing with a full edge to edge cover glass and invisible proximity touch controls that illuminate as your hand draws near and fade away once you’re done. The LED LCD TV also includes an ambient light sensor ensuring that you will always have the best picture and most efficient energy savings by adjusting the brightness based on the lighting conditions of your room. And when you’re not watching TV, the VM230XVT can be used as a digital picture frame to enjoy a slideshow of your family and friends.
But it doesn’t stop there! Experience advanced sound technologies from SRS Labs and take pleasure in knowing this mercury free, energy efficient LED LCD HDTV exceeds Energy Star® Guidelines by at least 65%**, conserving our planet’s resources while saving you money.
XVT Series

Extreme VIZIO Technology! The XVT Extreme VIZIO Technology series epitomizes cutting edge technology delivering an experience that’s simply out of this world. Learn More
Razor Thin Styling

Less than a 1” profile*, it’s simply amazing!
Contemporary Styling

Chic and stylish aesthetic with full edge to edge cover glass with the ability to tilt up to 25 degrees.
Ambient Lighting

Energy efficient sensors auto-adjust brightness for the perfect picture regardless of room conditions.
SRS TruVolume™

Limits volume inconsistencies between programming. Learn More
ECO HD™

Eco HD™- Exceeds the current Energy Star® Guidelines by 55%** below Energy Star 3.0, saving you money on your utility bills while limiting the impact on our planet.
Edge Lit Razor LED™

Razor LED™ - VIZIO is the first to bring LED technology to smaller size LCD HDTVs! This Mercury Free, Energy Efficient, Razor Thin HDTV achieves a 20,000:1 Dynamic Contrast Ratio giving you deeper blacks and brighter whites - 300 nits brightness.
1080P FULL HD

Full 1080P High Definition resolution gives you over 2 million pixels, making the clarity and detail of your picture razor sharp. Learn More
Illuminated Touch Controls with Proximity Sensor

Controls illuminate when your hand draws near and fade away once you’re done.
Digital Photo Viewing

Enjoy a slideshow of your family and friends (via USB Drive)***
SRS TruSurround HD™

Delivers immersive virtual high definition surround sound. Learn More
Mercury Free

The display’s backlight is environmentally-friendly due to the fact that LED backlights do not utilize mercury, an environmentally harmful substance.

*Maximum depth 1.7”
**When TV is on
***USB Flash Drive not included
Product Description
Tech Specs
| SPECIFICATIONS | |
| Class: | 23" |
| Viewable: | 23" diagonal |
| Tuner: | NTSC/ATSC/QAM |
| Native Panel Resolution: | 1920 x 1080 pixels |
| Signal Compatibility: | 1080P, 720P, 1080i, 480P, 480i |
| Colors: | 16.7 Million |
| Computer Support: | 1920 x 1080, 1400 x 900, 1360 x 768, 1024 x 768, 800 x 600, 640 x 480 via VGA/HDMI |
| Dynamic Contrast Ratio: | 20000:1 |
| Brightness: | 300 nits |
| Response Time: | 5ms |
| Viewable Angle: | 160/150 degrees (horizontal/vertical) |
| Pixel/Dot Pitch: | 0.265mm(H) x 0.265mm(V) |
| SRS TruSurround HD™: | Yes |
| SRS TruVolume™: | Yes |
| SRS TruSurround XT™: | No |
| INPUTS (REAR) | |
| HDMI with HDCP | 2 |
| RF Connector for Internal Tuner | 1 |
| Component YPbPr plus Stereo Audio: | 1 |
| S-Video: | 1 |
| Computer RGB: | 1 |
| INPUTS (SIDE) | |
| HDMI with HDCP | |
| RF Connector for Internal Tuner | |
| Component YPbPr plus Stereo Audio: | |
| Composite Video: | |
| S-Video: | |
| Computer RGB: | |
| USB Ports: | Multimedia (JPEG only) |
| Music (MP3): | |
| Video (MPG): | |
| Photo (JPEG): | Yes |
| OUTPUTS (REAR) | |
| SPDIF Digital Optical: | 1 |
| Stereo Audio: | 0 |
| Headphones: | 1 (side) |
| ADDITIONAL FEATURES | |
| Refresh Rate: | 60Hz |
| Smooth Motion: | No |
| LED: | Yes - edge lit |
| Picture-in-Picture (PIP): | No |
| Picture-outside-Picture (POP): | No |
| Zero Bright Pixel Defect Guarantee: | |
| V-Chip: | Yes |
| 3D Comb Filter: | Yes |
| 3:2 or 2:2 Reverse Pull-down: | Yes |
| ATSC with 8VSB & QAM demodulation: | Yes |
| ATSC with MPEG-2 decoding: | Yes |
| NTSC Video decoding via Video: | Yes via RF or Composite Video |
| Progressive Scan Video: | Yes, thru Component VGA or HDMI |
| Color Temperature: | 5400K, 6300K and 9300K |
| Color Fine Tuning: | Independent Red, Green and Blue |
| Speakers: | Built-in 5W x 2 Speakers |
| Panel Lamp Life (typical): | 30,000 Hours |
| Voltage Range: | 100~240 Vac at 50/60 Hz |
| Power Consumption: | 27 W (avg) |
| Universal Remote: | VIZIO Remote Control - VR9 |
| WEIGHT | |
| Gross: | 15.906lbs |
| Net With Stand: | 10.784lbs |
| Without Stand: | 9.8978lbs |
| DIMENSIONS | |
| With Stand: | 22.84"W x 16.01"H x 7.85"D |
| Without Stand: | 22.84"W x 14.64"H x 1.65"D |
| Packaging Dimensions: | 26.53"W x 17.87"H x 4.72"D |
| CERTIFICATIONS | Energy Star 3.0, CSA/ CSA-US, FCC Class B |
| COMPLIANCES | EIA/CEA-766-A |
| WALL MOUNT SPECIFICATIONS | |
| Hole Pattern: | VESA standard |
| Screw Size: | M4*10 |
| Screw Length: | 10.0mm |
| Screw Pitch: | 100 X 100 mm |
| VIZIO WARRANTY | One Year Parts & Labor Free Lifetime Technical Support |
Customer Reviews
- Great picture - annoying screen control Review by BruceH
-
We have had this television for about a year and a half. It has a great selection of inputs and even allows you to stream data to a USB thumb drive or hard drive to pause live television without the use of a PVR (kind of works like a PVR). If you want to wall mount it, the curved base stand comes off but the base pivot mount is permanently fastened to the television. It does not look bad being mounted so you do not have to worry.
The picture is great quality. Sometimes you have to play with the screen settings to fill the screen with the image depending on the format of the source material you are watching.
The sound is tinny out of the box but you can adjust it with the built-in EQ to make it useable.
The one problem (and only problem that I have come across) is the on-screen pop-up menu display that pops-up when you place your hand near the built-in proximity sensor. Apparently this thing can sense you 15 feet away as it continuously pops-up over top the program you are watching. Very annoying. One other person said this only happens when you use the HDMI input. With component input, the pop-up menu stays off until you wave your hand in front of the television.
Lots of settings to tweak the picture. Great TV for the bedroom or kitchen. Just don't use an HDMI source, only component or less.(Posted on 12/27/11)
- like TV, but have menu problem Review by bobk
-
TV is great. Extremely great for price.
We've had it since Nov. 2010.
A couple of problems though:
1) Menu on screen pops up on its own. Seems to happen after TV has warmed up a bit. Menu pops up on lower left of screen, covering a few inches. Stays up for maybe 30 seconds, then drops back down. Sometimes it happens enough to be annoying.
2) Remote buttons sometimes require repeated presses to get response.
Again, overall TV is great. Problems are minor.
(Posted on 2/24/11)
- we will see Review by FB
-
Bought two of these tv's December 2009. Noticed after watching the tv's for about an hour the sound woud go into an echoed garbled sound. Turn the tv off and then back on it was fine. Called support a month or two later and they said I needed to buy a external Fat32 drive and down load some software because it sounded like a power influx issue or something like that. Things happend and I now just got around to getting an external drive. Downloading firmware and hope that fixes the problem. Nothing but good things to say about the company, I also bought a 55" LCD couple years ago and that is why I bought these two. Great customer service, I just wish they would have sent me a preloaded external drive early on to fix there problem.
(Posted on 1/10/11)
- good tv Review by rp
-
have hade this tv for about month have hade one problem the picture on comp whent out a few times as watching a dvd pushed vol butten came back on it hade the 2.13 firmware on it called vizio coustomer support they told me to update firmware used a flash drive with the drive loncher on it it did not updatethe tv it messed up the frist screen with the vizio logo I called coustmer support they sent me a flash drive on nov. 19 2010 I got it on nov. 23 2010 it fixed the tv grate coustomer service
this is my 2 nd vizio tv(Posted on 11/25/10)
- this a grate buy Review by nukem
-
tgis my 2 nd vizio tv my frist is a 32 in lcd 1080p hdhade one problemso far the vido on the componite cut out a few times the customer support helped me my flasdrive messed up the firmware update they sent me a flasdrive flowed the incloused instructions and it worked you need to get a new flasdrive with nothing on it got my 23 in led back lit lcd 1080p from coustco.com I have hade no sound problems exept from staions transmions
(Posted on 11/24/10)
- I love this TV Review by Sea
-
This TV is wonderful.
(Posted on 11/9/10)
- Fills All My Needs Review by Kevin
-
I purchased this television to fill two roles in my home office; a secondary monitor for my dockable work laptop and as a small television for watching network television, local news, etc. I've recently connected it to my desktop in addition to my laptop, with each one using an HDMI port fed from the DVI ports on my notebook dock and desktop video card.
VM230 makes a great monitor, sporting full-HD 1080 resolution. The color is very crisp and clear. Whether I'm using it for web-browsing, watching videos, running music visualizations, and running work related applications, the images are sharp and rich. I can easily switch between using it as an extra monitor for my laptop or desktop by pushing the HDMI button on the remote to have it toggle.
Television viewing is great as well. I mostly watch the news and a few local HD networks. I don't use a cable box or converter, just the RF feed right into the TV. The image is responsive and very clear, with little to no ghosting. Shows are very detailed and very rich.
The only cons of the television are the sound, which many people have complained about. Tweak some of the settings, including turning off SRS and it will be great. This TV isn't designed to reproduce home theater quality sound, especially for a 23" screen size. For where this TV is ideal (bedroom, office, kitchen), the sound is adequate and does well. The other complaint is the slow channel changes.
It would be nice if this TV would automatically shut-off when there is no signal. I've shut a computer down as I've walked out of the house and come back to find the TV still on, wasting energy.
I'm upgrading the firmware as I type this, and am curious to see how it improves the TV.
Overall, I'm very happy with the TV and would recommend it to people considering buying it.(Posted on 10/25/10)
- Great HD at the price and style Review by BP
-
Love the Razor then and stays cool through out the day. Better picture quality than a 720P. This is a replacement for a 12 yr old Panasonic 25in TV. Better picture than any other TV with any brand name the same size or bigger 720P and 1080P.
(Posted on 9/21/10)
- Buying another one. Review by Bob
-
I use this tv at our breakfast bar. It is connected to a high def cable box and to the hdmi output of a small desktop computer. Does a fantastic job as a TV and as a Monitor. Thin design, great styling, great picture, and considering its thin profile, the sound is ok. Not Home Theater quality, but who would expect that in a set this thin. My only complaint, is that the menu screen pops up on its own. Have a feeling it may be caused by the computers wireless keyboard and mouse. Am now looking at a 26 inch one to do the same thing, but in the computer room.
(Posted on 8/15/10)
- Very Good TV Review by KeithK
-
I ordered this TV from WalMart online and received it about a week ago. I plugged it into my DirecTV box and I must admit, the overall picture & sound quality of both HD and non HD channels is very good.
It's a very slim TV, so it will fit nicely on a shelf or the dresser in your room.
The remote control is small and has a nice quality feel to it (I hate remotes with thousands of buttons. This remote is NOT one of those).
The only additional thing that I decided to do was purchase a VESA-Compliant monitor stand for it, which allows me to rotate the TV easier and raise it up or down for viewing comfort while in bed. The stand provided only allows you to swivel the TV's angle up or down.
The stand I bought was (it works well with this TV):
http://solutions.3m.com/wps/portal/3M/en_US/ergonomics/home/products/DisplayMountingSolutions/MA110MB/
It's a good TV, folks.(Posted on 8/11/10)
