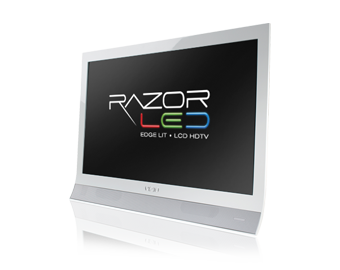

22” Class (21.53" Diag.) Edge Lit Razor LED™ LCD HDTV
MODEL NUMBER: M220VA-W Model Features:- • 21.53 inch diagonal
- • Edge Lit Razor LED™ LCD HDTV
- • Razor Thin Design With a 0.75" Profile*
- • 1080p Full HD
- • SRS TruSurround HD™ & SRS TruVolume™
- • ENERGY STAR® 4.1
- • Mercury Free
Product Overview
With only a 0.75” thin profile*, the M220VA 22" Class (21.53 inch diagonal) Edge Lit Razor LED™ LCD HDTV offers Full 1080p high definition resolution for crystal clear images, brilliant color, rich detail and deep contrast - all in a sleek razor thin design with black and white bezel color options. The LED LCD HDTV also includes a digital ambient light sensor ensuring that you will always have the best picture and most efficient energy savings by adjusting the brightness based on the lighting conditions of your room. Enjoy ultimate connectivity with five high definition inputs and when you’re not watching TV, the M220VA can be used as a digital picture frame to enjoy a slideshow of your family and friends.
But it doesn’t stop there! Experience advanced sound technologies from SRS Labs and take pleasure in knowing this mercury free, energy efficient LED LCD HDTV exceeds new Energy Star® 4.1 Guidelines by 33%**, conserving our planet’s resources while saving you money.
Edge Lit Razor LED™
Razor LED - VIZIO is the first to bring LED technology to smaller size LCD HDTVs! This Mercury Free, Energy Efficient, Razor Thin HDTV achieves a 20,000:1 Dynamic Contrast Ratio giving you deeper blacks and brighter whites - 250 nits brightness.
1080P Full HD
Full 1080P High Definition resolution gives you over 2 million pixels, making the clarity and detail of your picture razor sharp.
Ambient Lighting
Energy efficient sensors auto-adjust brightness for the perfect picture regardless of room conditions.
SRS TruSurround HD™
Delivers immersive virtual high definition surround sound. Learn More
ECO HD™
ECO HD™ exceeds new Energy Star® 4.0 Guidelines by 23%**, saving you money on your utility bills while limiting the impact on our planet.
Razor Thin Styling
A 0.75” thin profile* that is simply amazing!
Digital Photo Viewing
Enjoy a slideshow of your family and friends (via USB Drive)***
Dynamic Contrast Ratio
20,000:1 Dynamic Contrast Ratio delivers deeper blacks and brighter whites through contrast and dimensions.
SRS TruVolume™
Limits volume inconsistencies between programming. Learn More
Mercury Free
The display’s backlight is environmentally-friendly due to the fact that LED edge lights do not utilize mercury, an environmentally harmful substance.
*Maximum depth 2.37”
**When TV is on
***USB Flash Drive not included
Tech Specs
| SPECIFICATIONS | |
| Class: | 22" |
| Viewable: | 21.53" diagonal |
| Tuner: | NTSC/ATSC/QAM |
| Native Panel Resolution: | 1920 x 1080 pixels |
| Signal Compatibility: | 1080P, 1080i, 720P, 480P, 480i |
| Colors: | 16.7 Million |
| Computer Support: | 1920 x 1080, 1360 x 768, 1024 x 768, 800 x 600, 640 x 480 via VGA/HDMI |
| Dynamic Contrast Ratio: | 20,000：1 |
| Brightness: | 250 nits |
| Response Time: | 5ms |
| Viewable Angle: | 170/160 degrees (horizontal/vertical) |
| Pixel/Dot Pitch: | 0.248mm(H) x 0.248mm(V) |
| SRS TruSurround HD™: | Yes |
| SRS TruVolume™: | Yes |
| SRS TruSurround XT™: | No |
| INPUTS (REAR) | |
| HDMI with HDCP | 2 |
| RF Connector for Internal Tuner | 1 |
| Component YPbPr plus Stereo Audio: | 1 |
| S-Video: | |
| Computer RGB: | 1 |
| INPUTS (SIDE) | |
| HDMI with HDCP | |
| RF Connector for Internal Tuner | |
| Component YPbPr plus Stereo Audio: | |
| Composite Video: | |
| S-Video: | |
| Computer RGB: | |
| USB Ports: | Multimedia (JPEG only) |
| Music (MP3): | |
| Video (MPEG): | |
| Photo (JPEG): | Yes |
| OUTPUTS (REAR) | |
| SPDIF Digital Optical: | 1 |
| Stereo Audio: | |
| Headphones: | 1 |
| ADDITIONAL FEATURES | |
| Refresh Rate: | 60Hz |
| Smooth Motion: | No |
| LED: | Yes - edge lit |
| Picture-in-Picture (PIP): | No |
| Picture-outside-Picture (POP): | No |
| Zero Bright Pixel Defect Guarantee: | |
| V-Chip: | Yes |
| 3D Comb Filter: | Yes |
| 3:2 or 2:2 Reverse Pull-down: | Yes |
| ATSC with 8VSB & QAM demodulation: | Yes |
| ATSC with MPEG-2 decoding: | Yes |
| NTSC Video decoding via Video: | Yes via RF or Composite Video |
| Progressive Scan Video: | Yes, thru Component VGA or HDMI |
| Color Temperature: | 5400K, 6300K and 9300K |
| Color Fine Tuning: | Independent Red, Green and Blue |
| Speakers: | Built-in 3W x 2 Speakers |
| Panel Lamp Life (typical): | 30,000 Hours |
| Voltage Range: | 120Vac at 60Hz |
| Power Consumption: | 28W, <1W Standby |
| Universal Remote: | VIZIO Remote Control - VR10 or VR10W |
| WEIGHT | |
| Gross: | 13.45lbs |
| Net With Stand: | 8.653lbs |
| Without Stand: | 7.364lbs |
| DIMENSIONS | |
| With Stand: | 20.63"W x 14.09"H x 5.03"D |
| Without Stand: | 20.63"W x 14.09"H x 2.27"D |
| Packaging Dimensions: | "W x "H x "D |
| CERTIFICATIONS | Energy Star 4.1, UL, CUL, FCC Class B |
| COMPLIANCES | EIA/CEA-766-A |
| WALL MOUNT SPECIFICATIONS | |
| Hole Pattern: | VESA standard 75 X 75mm |
| Screw Size: | M4 |
| Screw Length: | 10.0mm |
| Screw Pitch: | 0.7 mm |
| VIZIO WARRANTY | One Year Parts & Labor Free Lifetime Technical Support |
