47" Class LCD HDTV
(46.96" Diag.)

MODEL NUMBER: E470VA Model Features:
  • 46.96 inch diagonal
  • 1080P Full HD
  • 120Hz Refresh Rate
  • 50,000:1 Dynamic Contrast Ratio
  • SRS TruSurround HD™ & SRS TruVolume™


  • Overview
  • Tech Specs
  • Customer Ratings
  • News & Reviews
  • More Photos
  • Support

Product Overview

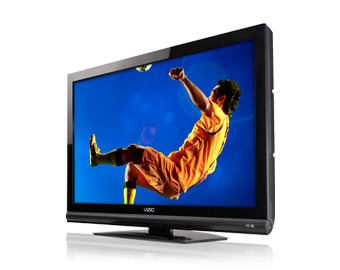

VIZIO’s E470VA 47” Class (46.96 inch diagonal) LCD HDTV delivers full 1080p HD picture quality and superior audio at an amazing value! This flat screen LCD HDTV features 120Hz refresh rate for razor sharp clarity, SRS TruVolume™ and SRS TruSurround HD™ audio for advanced virtual surround sound, 50,000 to 1 Dynamic Contrast Ratio giving you deeper blacks and brighter whites, and four HDMI ports to connect up to four HDMI devices to your TV. The E550VA also exceeds ENERGY STAR® 4.1 Guidelines*, offering 60% less energy consumption than the 47" 2009 model and utilizes built-in ambient light sensing technology, which automatically adjusts backlight levels to the brightness of its surroundings.

1080P FULL HD
1080P Full HD

Full 1080P High Definition resolution gives you over 2 million pixels, making the clarity and detail of your picture razor sharp.  Learn More

Ambient Lighting
Ambient Lighting

Energy efficient sensors auto-adjust brightness for the perfect picture regardless of room conditions.

ECO HD™
ECO HD

ECO HD™ exceeds new ENERGY STAR® 4.1 Guidelines*and offers 60% less energy consumption than the 47” 2009 model, saving you money on your utility bills while limiting the impact on our planet.

Dynamic Contrast Ratio
Dynamic Contrast Ratio

50,000:1 Dynamic Contrast Ratio delivers deeper blacks and brighter whites through contrast and dimensions.  Learn More

SRS TruSurround HD™
SRS   TruSurround HD

Delivers immersive virtual high definition surround sound.  Learn More

SRS TruVolume™
SRS    TruVolume

Limits volume inconsistencies between programming.  Learn More

*When TV is on

Tech Specs

SPECIFICATIONS
Class: 47"
Viewable: 46.96" diagonal
Tuner: NTSC/ATSC/QAM
Native Panel Resolution: 1920 x 1080 pixels
Signal Compatibility: 1080P, 1080i, 720P, 480P, 480i
Colors: 1.06 Billion
Computer Support: 1360 x 768 via HDMI, 1360 x 768, 1024 x 768, 800 x 600, 640 x 480 via RGB
Dynamic Contrast Ratio: 50,000:1
Brightness: 500 cd/m2
Response Time: 5ms
Viewable Angle: 178/178 degrees (horizontal/vertical)
Pixel/Dot Pitch: 0.5415mm(H) x 0.5415mm(V)
SRS TruSurround HD™: Yes
SRS TruVolume™: Yes
SRS TruSurround XT™: No



INPUTS (REAR)
HDMI with HDCP 4
RF Connector for Internal Tuner 1
Component YPbPr plus Stereo Audio: 1
S-Video:
Computer RGB: 1
Composite Video:
USB Ports: 1 (Jpeg Only)
Photo (JPEG):



INPUTS (SIDE)
HDMI with HDCP
RF Connector for Internal Tuner
Component YPbPr plus Stereo Audio:
Composite Video:
S-Video:
Computer RGB:
USB Ports:
Music (MP3):
Video (MPEG):
Photo (JPEG):



OUTPUTS (REAR)
SPDIF Digital Optical: 1
Stereo Audio:
Headphones:



ADDITIONAL FEATURES
Refresh Rate: 120Hz
Smooth Motion: Yes
Panel Type: CCFL, LCD
Picture-in-Picture (PIP): No
Picture-outside-Picture (POP): No
Zero Bright Pixel Defect Guarantee: Yes
V-Chip: Yes
3D Comb Filter: Yes
3:2 or 2:2 Reverse Pull-down: No
ATSC with 8VSB & QAM demodulation: Yes
ATSC with MPEG-2 decoding: Yes
NTSC Video decoding via Video: Yes
Progressive Scan Video: Yes
Color Temperature: 5400K, 6300K and 9300K
Color Fine Tuning: Red/Green/Blue
Speakers: Built-in 10W x 2 Speakers
Panel Lamp Life (typical): 60,000 Hours
Voltage Range: 120Vac at 50/60Hz
Power Consumption: 88W, <1W Standby
VIZIO Remote Control: VUR11



WEIGHT
Gross: 67.46 lbs
Net With Stand: 55.34 lbs
Without Stand: 43.37 lbs



DIMENSIONS
With Stand: 44.13"W x 29.57"H x 10.75"D
Without Stand:

44.13"W x 27.96"H x 3.69"D

Packaging Dimensions: 50.39"W x 34.25"H x 8.85"D



CERTIFICATIONS CSA, CSA-US, FCC Class B



COMPLIANCES Energy Star 4.1 ATSC Spec A/65, EIA/CEA-766-A



WALL MOUNT SPECIFICATIONS
Hole Pattern: VESA standard 400 X 200mm spacing
Screw Size: M6
Screw Length: 10.0mm
Screw Pitch: 1.0 mm



VIZIO WARRANTY  One Year Parts & Labor Free Lifetime Technical Support

Write Your Own Review

You're reviewing: E470VA

Your name and email address will be kept confidential.

Review on VIZIO E470VA 47-Inch 1080p 120 Hz LCD HDTV
September 8, 2010
Vizio E470VA is a 47-Inch 1080p 120 Hz LCD HDTV, which delivers full 1080p HD picture quality and superior audio at an amazing value...Read More

Product Photos

E470VA

Support Information

If you are experiencing issues with this model, please call us at 888-849-4623 and select the option for technical support. A firmware update could potentially fix your issue. Thanks for your business!

Product Downloads

User Manual: E470VA User Manual PDF
Quick Start Guide: E470VA Quick Start Guide PDF

To view these documents, you will need to install the free Adobe Reader software.
Get Adobe Acrobat Reader

Warranty Details

Click here for the warranty details of your E470VA.
